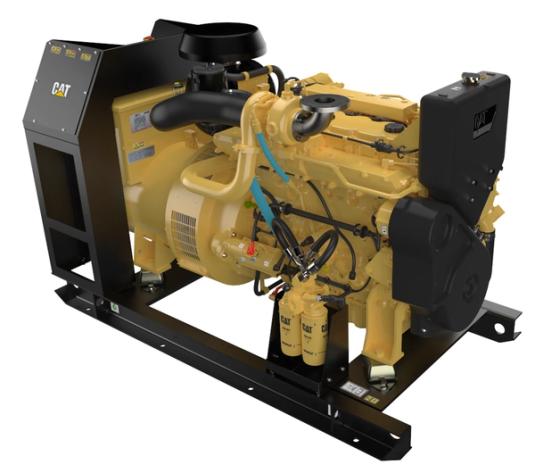

CAT C7.1

Marine Genset

Power

100 eKW

Lowest
Low
Medium
High
Highest

Speed

1500 RPM

Lowest
Low
Medium
High
Highest

Hertz: 50
Cooling: Hex
Mounting:
Generator: TBD
Emission: IMO II EPA Tier 3
Read more about CAT SCR

Fuel consumption data from Caterpillar high speed engines are general +/- 3%, including engine driven pumps (fuel transfer pump, oil pump and cooling water pump).

Must be accounted for when comparing with engines where fuel consumption is given with tolerance +5% and approximately +1% per engine driven pump.

Downloads

You need to log in or sign up to download simplified drawings and full specifications.

Performance data73.26 kBPDF
2D GA - DWG2.43 MBdwg
2D GA - pdf369.42 kBpdf
Schematics2.43 MBPDF
Installation guide9.4 MBPDF
Betjenings- og vedlikeholdshåndbok3.41 MBpdf
Technical Specification190.44 kBpdf

Dimensions & weight

Width: 956
Height: 1270
Length: 1927 mm
Weight: 1530 kg

SPECIFICATIONS
I-6, 4-Stroke-Cycle-Diesel
• EPA Tier 3/IMO compliant/CCNR Stage 2
• 7.01 liter displacement
• 50 Hz 1500 rpm/60 Hz 1800 rpm rated engine speed
• 105 mm (4.13 in) bore x 135 mm (5.32 in) stroke
• Turbocharged-aftercooled aspiration
• Electronically governed
• Heat exchanger or keel cooled
• Refill capacity
– Cooling system: 38 L (10.0 U.S. gal) — hex
– Lube oil system: 21 L (5.6 gal)
• Counterclockwise rotation from flywheel end
• 500-hour oil change interval
