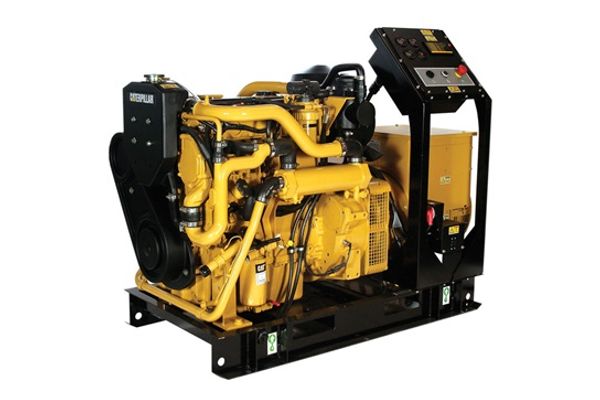

C4.4

Marine Genset

Power

69 eKW

Lowest
Low
Medium
High
Highest

Speed

1500 RPM

Lowest
Low
Medium
High
Highest

Hertz: 50
Cooling: Keel
Mounting:
Generator: TBD
Emission: IMO II EPA Tier 3
Read more about CAT SCR

Fuel consumption data from Caterpillar high speed engines are general +/- 3%, including engine driven pumps (fuel transfer pump, oil pump and cooling water pump).

Must be accounted for when comparing with engines where fuel consumption is given with tolerance +5% and approximately +1% per engine driven pump.

Downloads

You need to log in or sign up to download simplified drawings and full specifications.

Performance data 57.24 kBPDF
2D GA - DWG3.21 MBdwg
2D GA - PDF993.86 kBpdf
Schematics1.29 MBPDF
Installation guide5.41 MBpdf
Technical Specification202.21 kBpdf
Betjenings- og vedlikeholdshåndbok2.95 MBPDF

Dimensions & weight

Width: 758
Height: 1406
Length: 1589 mm

SPECIFICATIONS
I-4, 4-Stroke-Cycle-Diesel
Displacement. . . . . . . . . . . . . . . . . . . . . . 4.4 L (269 cu. in.)
Bore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105 mm (4.13 in.)
Stroke . . . . . . . . . . . . . . . . . . . . . . . . . . . 127 mm (4.99 in.)
Combustion. . . . . . . . . . . . . . . . . . . . . . . . . Direct Injection
Aspiration. . . . . . . . . . . . . . . . Turbocharged-Aftercooled
Governor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Electronic
Gen Set Package Dry Weight
(approx) . . . . . . . . . . . . . . . . . . . . . . . . 1029 kg (2269 lb)
Total System Capacity
Cooling System. . . . . . . . . . . . . . 16.5 L (4.36 U.S. gal)
Lube Oil System . . . . . . . . . . . . . . 8.5 L (2.25 U.S. gal)
Oil Change Interval . . . . . . . . . . . . . . . . . . . . . . . . . . 500 hr
Rotation (from flywheel end). . . . . . . Counterclockwise
