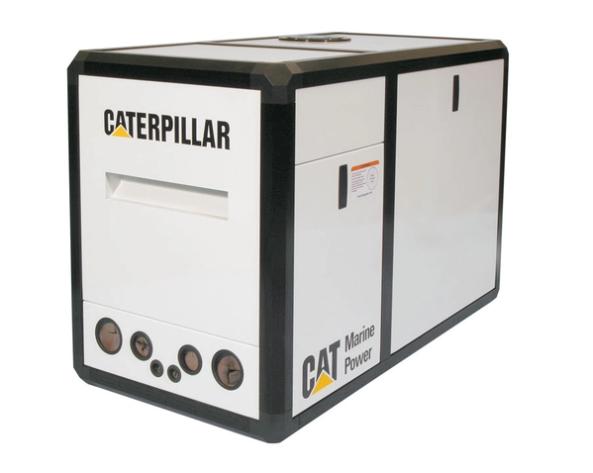

C2.2

Marine Genset

Power

20 eKW

Lowest
Low
Medium
High
Highest

Speed

1500 RPM

Lowest
Low
Medium
High
Highest

Hertz: 50
Cooling: Hex
Mounting:
Generator: TBD
Emission: IMO II EPA Tier 3
Read more about CAT SCR

Fuel consumption data from Caterpillar high speed engines are general +/- 3%, including engine driven pumps (fuel transfer pump, oil pump and cooling water pump).

Must be accounted for when comparing with engines where fuel consumption is given with tolerance +5% and approximately +1% per engine driven pump.

Downloads

You need to log in or sign up to download simplified drawings and full specifications.

2D GA - DWG7.14 MBdwg
2D GA - PDF1 MBpdf
Schematics5.81 MBPDF
Installation guide8.01 MBPDF
Technical Specification184.23 kBpdf
Betjenings- og vedlikeholdshåndbok12.47 MBPDF
CAT Datasheet260.11 kBpdf

Dimensions & weight

Width: 628
Height: 785
Length: 1290 mm

ENGINE SPECIFICATIONS
I-4, 4-Stroke-Cycle-Diesel
Emissions . . . . . . . . . . . . . . . . . . 60 Hz meets EPA Tier 3*,
50 Hz meets EU 97/68EC Stage II regulations
Displacement. . . . . . . . . . . . . . . . . . . . . . 2.2 L (135 cu. in.)
Bore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 mm (3.31 in.)
Stroke . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 mm (3.94 in.)
Aspiration . . . . . . . . . . . . . . . . . . . . . . Naturally Aspirated
Governor. . . . . . . . . . . . . . . . . . . . . Electrical Isochronous
Estimated Dry Weight
Open Set . . . . . . . . . . . . . . . . . . . . . . . . . . 389 kg (857 lb)
Enclosed Set . . . . . . . . . . . . . . . . . . . . . 466 kg (1027 lb)
Refill Capacity
Cooling System
(engine and expansion tank). . . . 9 L (2.4 U.S. gal)
Lube Oil System . . . . . . . . . . . . . . 10.6 L (2.8 U.S. gal)
Oil Change Interval . . . . . . . . . . . . . . . . . . . . . . . . . 500 hrs
Rotation (from flywheel end). . . . . . . Counterclockwise
*EPA Tier 3 enforced from January 1, 2008 for engines < 37 kW
