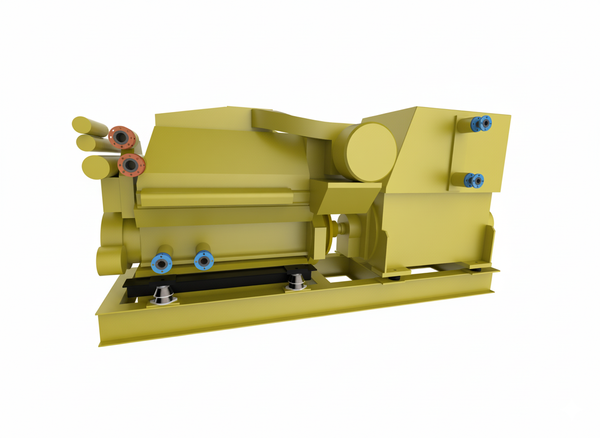

CAT 3512E
Variable speed Diesel Electric Genset, Methanol ready
- Hertz: N/A
- Cooling: Keel
- Mounting: Genflex
- Generator: TBD
- Emission: IMO II / IMO III
Read more about CAT SCR
Fuel Consumption
| RPM | bkW | BSFC [g/bkW h] |
| 1800 | 1792 | 205,3 |
Log in to view all rows.
Fuel consumption data from Caterpillar high speed engines are general +/- 3%, including engine driven pumps (fuel transfer pump, oil pump and cooling water pump).
Must be accounted for when comparing with engines where fuel consumption is given with tolerance +5% and approximately +1% per engine driven pump.
Downloads
You need to log in or sign up to download simplified drawings and full specifications.
Simplified GA 2D incl SCR
- Simplified GA 3D
- Simplified GA 3D
- CAT SCR 3D
- Performance data
- Techspec
Dimensions & weight
- Width: 2066 mm
- Height: 2509 mm
- Length: 5503 mm
- Weight: 16500 kg
Changelog
2020-08-27
updated weight from 17000 kg to 16500 kg on the dwg.
