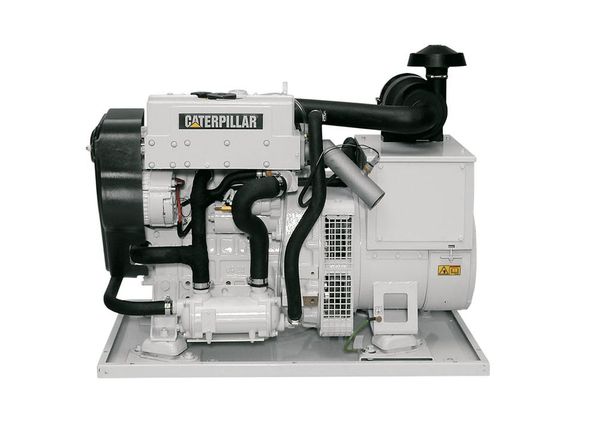

C1.5

Auxiliary genset

Power

12 eKW

Lowest
Low
Medium
High
Highest

Speed

1800 RPM

Lowest
Low
Medium
High
Highest

Hertz: 60
Cooling: Hex
Generator: TBD
Emission: IMO II EPA Tier 3
Read more about CAT SCR

Fuel consumption data from Caterpillar high speed engines are general +/- 3%, including engine driven pumps (fuel transfer pump, oil pump and cooling water pump).

Must be accounted for when comparing with engines where fuel consumption is given with tolerance +5% and approximately +1% per engine driven pump.

Downloads

You need to log in or sign up to download simplified drawings and full specifications.

2D GA - pdf1.07 MBpdf
Schematics5.81 MBPDF
Installation guide8.01 MBPDF
Technical Specification271.83 kBpdf
Betjening- og Vedlikeholdshåndbok12.47 MBPDF

Dimensions & weight

Width: 535
Height: 689
Length: 1044 mm

OVERVIEW
Cat® C1.5 Diesel Marine Generator Set has single phase ratings of 50 Hertz at 10.0 ekW and 60 Hertz at 12.0 ekW that meet U.S. EPA Tier 3 and EU IW emission standards. The Cat® C1.5 also has three phase ratings of 50 Hertz at 11.0 ekW and 60 Hertz at 13.0 ekW that meet U.S. EPA Tier 3 and EU IW emissions standards. This generator set is available in 12 or 24 volt as an open gen set or as an enclosed package.

GENERATOR SET SPECIFICATIONS
Minimum Rating 10 ekW (10 kVA)
Maximum Rating 13 ekW (16.5 kVA)
Frequency 50 Hz or 60 Hz
Speed 1500 rpm (50Hz) or 1800 rpm (60 Hz)
Emissions/Fuel Strategy 60 Hz meets EPA Tier 3*, 50 Hz meets EU 97/68EC Stage II regulations
ENGINE SPECIFICATIONS
Engine Model C1.5, In-line 3, 4-Stroke-Cycle-Diesel
Aspiration Naturally Aspirated
Bore 84.0 mm
Stroke 90.0 mm
Displacement 1.5 l
Governor Type Electrical Isochronous
GENERATOR SET DIMENSIONS
Weight 319 kg (open), 368 kg (enclosed)
Length 962 mm (open), 1021 mm (enclosed)
Width 533 mm (open), 608 mm (enclosed)
Height 699 mm (open), 710 mm (enclosed)
GENERATOR SPECIFICATIONS
Excitation AREP
Insulation Class H
Voltage Regulation ±0.5%
Frame Size 1.5
