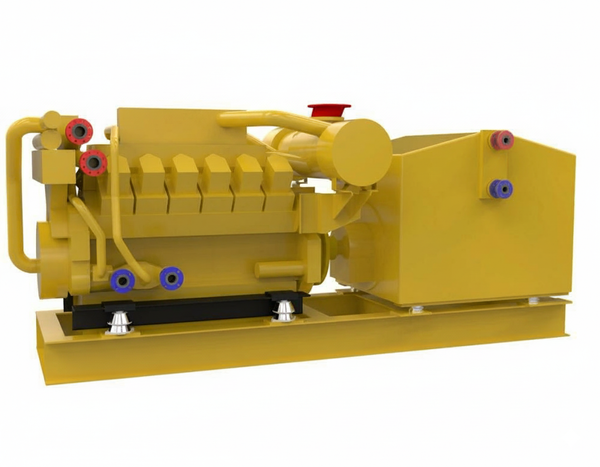

CAT 3512C

Diesel Electric Genset

Power

1360 eKW

Lowest
Low
Medium
High
Highest

Speed

1800 RPM

Lowest
Low
Medium
High
Highest

Hertz: 60
Cooling: Keel
Mounting: Genflex
Generator: TBD
Emission: IMO II / IMO III
Read more about CAT SCR

Fuel Consumption

Load [%]	BSFC [g/bkW h]
100	203,6

Fuel consumption data from Caterpillar high speed engines are general +/- 3%, including engine driven pumps (fuel transfer pump, oil pump and cooling water pump).

Must be accounted for when comparing with engines where fuel consumption is given with tolerance +5% and approximately +1% per engine driven pump.

Downloads

You need to log in or sign up to download simplified drawings and full specifications.

Simplified GA 2D incl SCR2.48 MBdwg
Simplified GA 3D1.19 MBJT
Simplified GA 3D3.18 MBSTP
CAT SCR 3D12.73 MBstp
TechSpec297.44 kBpdf
Performance data91.55 kBPDF
Last ned fil12.73 MBstp
Last ned fil186.49 kBpdf
Last ned fil1.6 MBdwg

Dimensions & weight

Width: 2037 mm
Height: 2246 mm
Length: 4788 mm
Weight: 15500 kg

- Compact Genset Design using our GenFlex assembly technology, reducing generator wear and structure borne noise.

- Full tailor made possibility, yard supplied generators or other makes possible.

- Possibility for both dual and triple isolation design, for extreme requirements on structure borne noise.
